PCBA Board Line

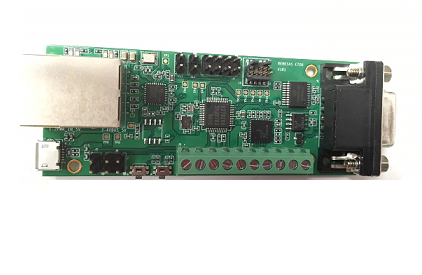

ETOU Converter

Product Feature

  • PCBA Dimension : 87.1mm x 33.5mm x 1.2mm
  • ARM Cortex-M0+ Core @ 32MHz Maximum Frequency
  • 4KB data flash memory
  • 256KB code flash memory
  • 24KB SRAM
  • Integrated 10/100M transceiver with HP Auto-MDIX, fully compliant with the IEEE802.3u and also support 802.3x full-duplex flow control
  • CAN data transmission rates from 1KBaud, up to 1MBaud, fully compliant with ISO 11898-2
  • RS-485 and RS-422 differential data transmission standards , up to 20Mbps Data Rate
  • Power by 5V through Micro-USB connector or Terminal Block connector, switched by jumper
  • Total four output LED indicators, three LEDs are used for Ethernet activities and one LED is used to indicate 3V3 operating voltage working normally
ETOU Converter

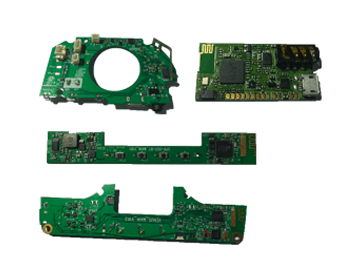

Wireless Audio

Wireless Audio

Product Feature

  • 2x 31Φ driver speaker with Stereo Music entertainment
  • Microphone embedded to support Speaker Mode
  • NFC tag enabled to make Pairing easily
  • USB Fast Charging. Charging Current 500mA
  • Stereo 3.7W Class D Amplifier
  • Bluecore CSR8635, CSR8645, and CSR867X Solution
  • Customized Antenna Design and Fine-Tune
  • SuperBass and Louder Acoustic Performance
  • A2DP V1.2 AVRCP V1.4 and HFP V1.6 Profiles Supported
  • Wireless and AUX Audio Switch Automatically

Wireless Pedometer

Product Feature

  • The Smallest PCBA Dimension 11mmx22mmx0.6mm
  • Nordic nRF51822 Chip
  • Freescale MMA9555 Sensor Hub with Built-in Pedometer Algorithm
  • Seiko RTC Chip embedded
  • MXIC SPI Flash , 2M-BIT installed
  • Vibrator control is supported
  • IOS and Android APP SDK is supported
    • Profiles :
  • GATT Service
  • Device Information Service
  • Battery Service
  • Generic Access Service
Wireless Pedometer
Wireless Remote Control

Wireless Remote Control

Product Feature

  • Connectivity : Wireless Low Energy Radio
  • Profiles : Security Manager(SM), Attribute Protocol (ATT) and Generic Attribute Profile (GATT),HID over GATT, and Battery Services and Find Me
  • Maximum Operating Range :10m as 0 dBm Output Power
  • Battery Type : Coin Battery CR2032
  • Battery Life : 1 Year
  • Feature Function : Simple KeyPad and Buzzer
  • Dimension : 38.41mmx150.6mmx11.95mm
  • Wireless Chipset : NORDIC nRF51822

2.4G Audio

Product Feature

  • 3 Different Categories of Devices to One host (3-in-1)
  • Audio Device with non-compressed 48KHz/16bits True CD stereo Quality
  • Voice Device with sampling rate up to 32KHz
  • HID Device with low current consumption: 3mA ~ 4mA
  • Low Device Sleep Current: <100μA
  • Dynamic RF Output Power Control to guarantee
  • On-chip Maximum RF Output Power: +7dBm
  • Longer Operating Range without External PA
  • Better Coexistence with WiFi (especially 802.11n)
  • Configurable & Variable total numbers of Hopping RF Channels employed
  • Capability to do Rx side’s RSSI evaluation at Tx side for better RX QoS
2.4g audio
Miracast/DLNA WIFI

Miracast/DLNA WIFI

Product Feature

  • Android OS, 4.4
  • RTD1195 ARM Cortex A7 @ 1.2GHz, Dual-Corel
    • 512KB L2 Cache
    • 1GB DDR3 SDRAM
    • 8GB NAND Flash
  • Networking
    • AP6210 802.11b/g/n + Wireless low energy
  • USB Interface
    • USB2.0 Host x 2
  • 5 inch High Resolution Touch Screen Display
  • Video Interface
    • HDMI 1.4 Input x 1
    • HDMI 1.4 Output x1
  • Audio Jack Output
  • Miracast /DLNA/AirPlay Mirror Function
  • WMA/WAV/OGG/AAC.FLAC/3GP Video Supported
  • MP4/MKV/AVI/RM.RMVB/MOV Audio Supported
